Korvex 2.0T Mini Excavator

  • 1-year warranty backed by our own UK parts team
  • PDI-checked, UKCA-plated & serial-logged before delivery
£14,495£16,301Save £1,806 in total
ex VAT · £17,394 inc VAT · price follows your selection
1 · Choose your machine
Call 01392 542040Ask a question

Nothing is paid online. Place your order and we will call you to confirm delivery and arrange payment.

Add accessories · ship with your machineView all
Hydraulic Breaker
Hydraulic Breaker£628 ex VAT
Auger
Auger£359 ex VAT
Skeleton Bucket
Skeleton Bucket£314 ex VAT
Hydraulic Thumb
Hydraulic Thumb£239 ex VAT
Log Grabble
Log Grabble£180 ex VAT
1000mm Toothless Bucket
1000mm Toothless Bucket£127 ex VAT
600mm Teeth Bucket
600mm Teeth Bucket£112 ex VAT
Rake
Rake£105 ex VAT
Thumb Clip
Thumb Clip£90 ex VAT
Narrow Bucket
Narrow Bucket£67 ex VAT
Ripper
Ripper£60 ex VAT
Swipe for more
£14,495bundle · ex VAT

About this machine

The Korvex 2.0T Mini Excavator

The biggest machine in the range, for builders and groundworkers who want serious digging power without the cost of a big-brand badge. The 2 tonne digs to 2,290 mm and reaches 3,735 mm at ground level, with a 2,000 kg operating weight that keeps it planted under load. Expandable tracks go from 1,000 mm for getting through a gateway to 1,250 mm for stability once you are working. Power is a genuine Kubota D902 three-cylinder diesel rated at 15.8 hp, with two-speed travel up to 4 km/h and 230 mm rubber tracks. Every machine is PDI-checked, UKCA-plated and logged by serial number at our Devon depot before it leaves, with a 12 month parts warranty and spares held in UK stock.

Specification

Korvex 2.0T Mini Excavator · figures in mm unless stated
KubotaD902
Diesel engine · 15.8 hp
1year
Warranty · UK parts team
2,290mm
Max dig depth
2,000kg
Operating weight
1,000–1,250mm
Expandable width
3,735mm
Reach at ground
Dimensions12 figures · 3 drawings
Side
Side
Rear
Rear

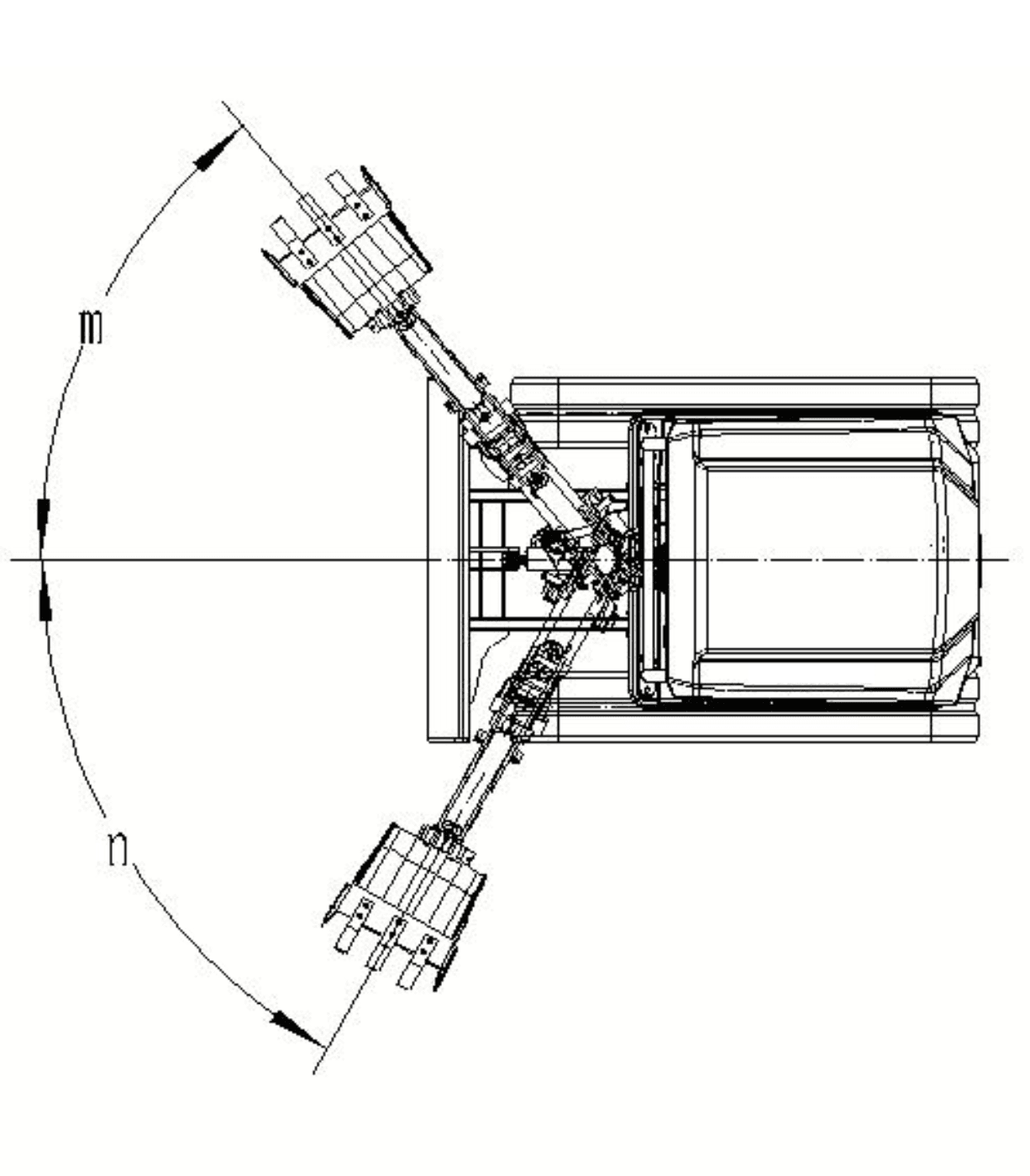

Boom offset · plan
Boom offset · plan
hOverall length3,470mm
eOverall width1,000–1,250mm
jOverall height2,295mm
bTrack length on ground1,550mm
dTail swing radius805mm
fTrack width230mm
aWheelbase1,230mm
Track gauge770 / 1,020mm
cCounterweight clearance440mm
gTrack height320mm
mBoom offset, right50°
nBoom offset, left60°
Working range9 figures · 1 drawing
Working range · side
Working range · side
FMax digging height3,485mm
GMax dumping height2,440mm
HMax digging depth2,290mm
IMax vertical wall depth1,750mm
LMax reach at ground level3,735mm
KMin front swing radius1,395mm
MDozer blade lift160mm
NDozer blade cut220mm
JMax reach3,790mm
Engine7
Make / modelKubota D902
Type3-cylinder water-cooled diesel
Displacement0.898L
Net power11.8 kW15.8 hp
Rated speed2,300rpm
Max torque51.3Nm @ 1,800 rpm
Electrical system12V
Hydraulics4
ControlsPilot joysticks, ISO pattern
Pump typePiston pump
Working pressure205bar
Track expansionHydraulic
Performance7
Operating weight2,000kg1
Travel speed (high / low)4.0 / 2.0km/h
Swing speed8rpm
Gradeability30°
Ground pressure28kPa2
Track tensionerGrease
Warranty12months
Capacities4
Fuel tank20L
Hydraulic tank20L
Engine oil3.7L
Standard bucket0.03m³
Undercarriage3
Rubber track230 mm wide
Expandable tracksYes, 1000–1250 mm
Track rollers3 per side

1Manufacturer's stated operating weight. The measured weight of your machine is confirmed at pre-delivery inspection.

2Calculated from operating weight and track contact area.

Full spec sheet for the 2.0T Mini Excavator on request. ask us.
